smit lloyd/ tug anchorhandeling/ supply vessels
![images[36]03](../assets/images/autogen/a_images_36_03.jpg "images[36]03")

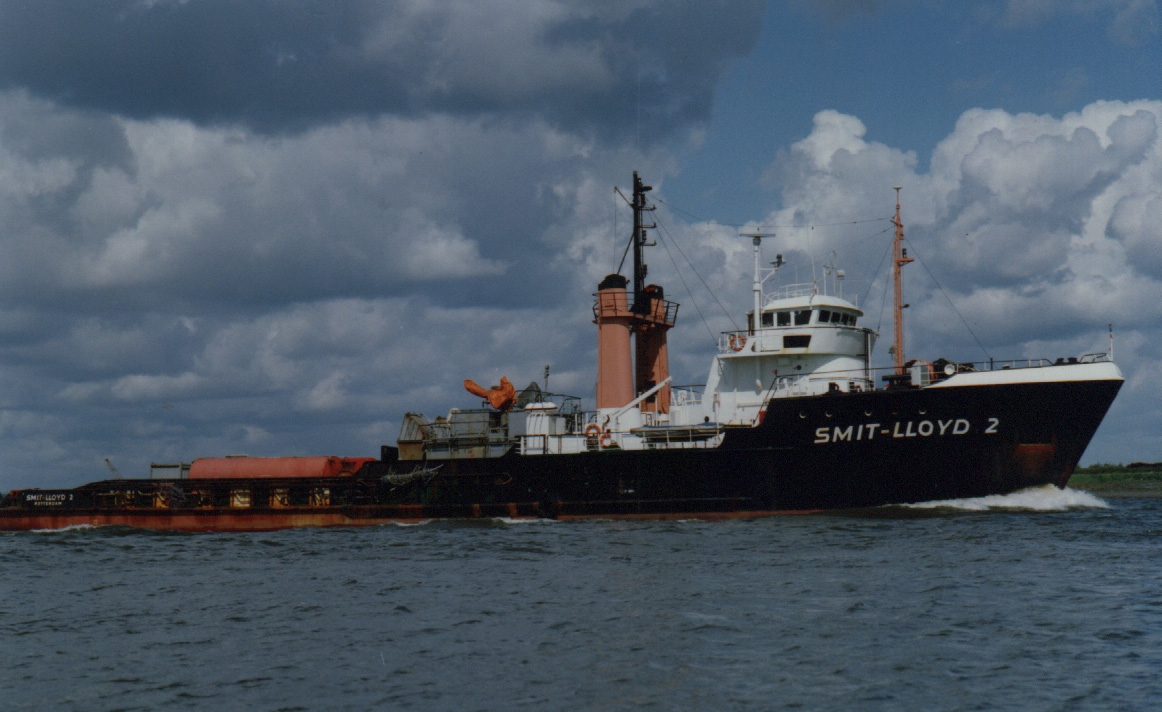

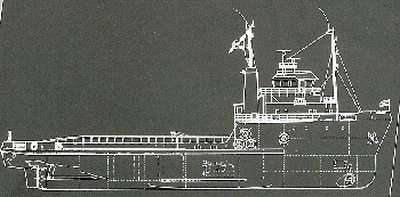

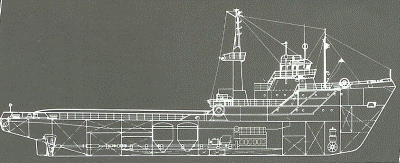

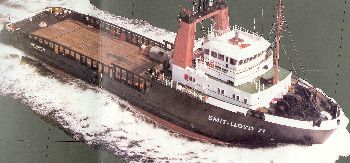

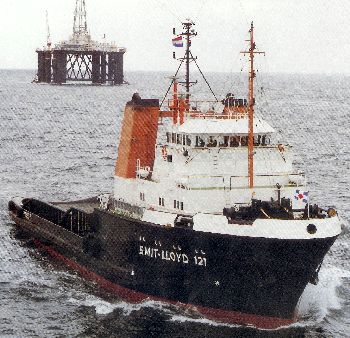

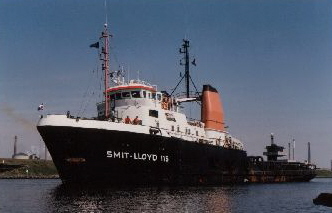

3000 HP CLASS:
TUG/ANCHORNANDELING/SUPPLY VESSELS
dimensions
Lenth o.a. 59.76m (196"1")
beam o.a. 11.72m (35"5")
depth 5.15m (16"10)
draugt (max) 4.31m (14"1")
Cargo capacities:
total dead weight 700 tons
feul 280 tons
drilling water 410 tons
potable water 95 tons
dry bulk (5 tanks) 4000 cu.ft.
deck cargo 400 tons
deck area 32x8.83m (105"x29")
machinery:
main engines 2x1500hp at 300 r.p.m driving c.p.propellers
bollard pull 34 tons
bowthruster 250 hp lateral trust 3 tons
winches:
2 or 3 drum anchorhandeling/towing winch
pull max 60 tons
speed/feul consumption:
max 14 knots 12 tons / day
economic cruising 12.5 knots 8 tons /day

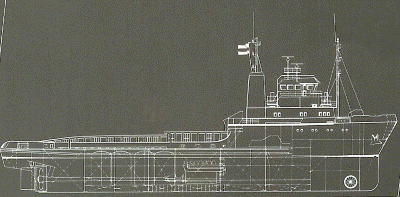

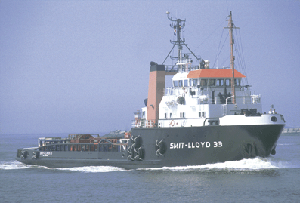

4000 hp class :
tug/anchorhandeling/supply vessels
dimensions:
length o.a. 54.81 m (179"10")
beam o.a. 12.30 m(40"4")
depth 4.97 m(16"3")
draught (max) 4.40 m(14"5)
cargo capasities:
total dead weight 760 tons
feul 210 tons
drilling water 510 tons
potable water 146 tons
dry bulk 3900 cu.ft.
deck cargo 400 tons
deck area 28.9x9.44 (95'X31")
rig chainlockers 2,4 or 8
total cap 200 m max
machinery:
main engines 2x2000hp at 430 r.p.m.driving c.p.propellers in fixed nozzles
bollard pull 43 tons
bowthruster 300 hp lateral thrust 3.4 tons
winches:
two drum anchorhandeling/towingwinch
pull (max) 140 tons
speed/feul consumption
max.13.4 knots 12 tons/day
economic speed 12 knots 7tons/day

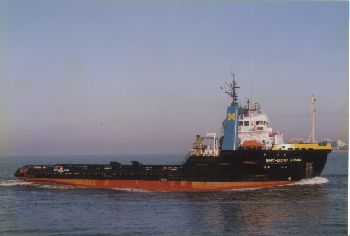

4500 hp class:
tug/anchorhandeling/supply vessels
dimensions:
length o.a. 57.44 m (188")
beam o.a. 12.50 m (41")
depth 5.80 m (19")
draught (max) 4.81 m(16")
cargo capacitie:
total dead weight 1100 tons
feul 433 tons
drilling water 564 tons
potable water 219 tons
dry bulk (6 tanks) 4800 cu.ft
deck cargo 500 tons
deck area 34x9.6 m (111"x31")
machinery:
main engines 2 x 2250 hp at 900 r.p.m driving c.p.propellers
bollard pull 60 tons
bowthruster 450 hp lateral thrust 4.5 tons
winches:
two drum anchorhandeling/towing winch
pull (max) 100 tons
speed/feul consumption:
max 13 knots 13tons /day
economic cruising 11.5 knots 7tons/day

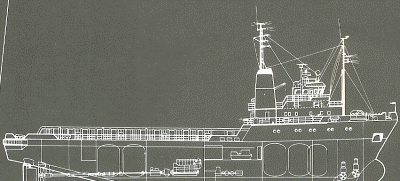

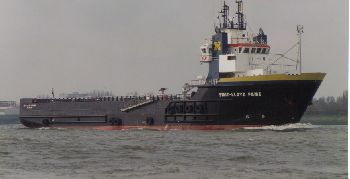

6000 hp class:
tug/anchorhandeling/supply vessels
dimensions:
length o.a. 60.48 m (198")
beam o.a. 14.oo m (46")
depth 6.50 m (21)
draught 5.25 m(17)
cargo capacities:
total dead weight 1300 tons
feul 600 tons
drilling water 600 tons
potable water 200 tons
dry bulk (6 tanks) 6000 cu.ft.
deck cargo 650 tons
deck area 35.0x 11m (114"x36")
rig chainlockers 2
total capacity 120 m
machinery:
main engines 2 x 3000 hp at 600 r.p.m. driving c.p. propellers
bollard pull 80 tons
bowthruster 500 hp , lateral thrust 6.0 tons
winches:
two drum anchorhandeling/towing winch
pull (max) 140 tons
two pendant wire storage reels each with a capacity of 1300 m of 64 mm (4265 feet) are installed on two vessels of this class for deep water.
anchorhandeling operations (up to 2600 feet waterdephts
speed/fuel consumption
max 14.5 knots 25 tons/day
economic cruising 12.5 knots 12 tons/day
extra features such as:
a two drum towing winch
a two drum anchorhandeling winch
fire fighting installation with foam and lightwater tank .

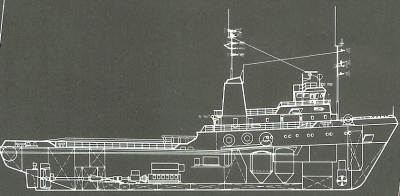

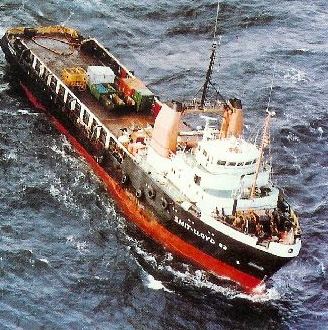

8000 hp class
tug/anchorhandeling/supply vessels
dimensions:
length o.a. 63.89 m (209"7")
beam o.a. 13.30 m (43"8")
depth 6.30 m (20"8")
draught (max) 5.06 m (16"7")
cargo capacities:
total dead weight 1100 tons
feul 450 tons
drilling water 600 tons
potable water 110 tons
dry bulk (5 tanks) 6275cu.ft.
deck cargo 500 tons
deck area 33.5 10.4 m 110"x34")
rig chainlockers 4
total capacity 200m
machinery:
main engines 2x 4000 hp at 550 r.p.m. driving c.p. propellers in fixed nozzles
bollard pull 100 tons
bowthruster 310 hp lateral thrust 5 tons
winches:
three drum anchorhandeling/towing winch
pull (max) 140 tons
deep water anchorhandeling vessels are equipped with two and four storage reels
speed/feul consumption
max. 15 knots 28 tons/day
economic cruising 12.5 knots 13 tons/day

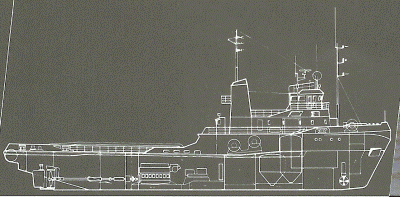

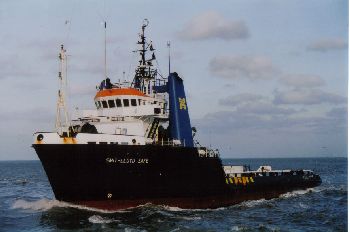

10000 hp class
tug/anchorhandeling/supply vessels
dimensions:
length o.a. 63.40 m (208")
beam o.a. 15.20 m (50")
depth 7.00 m (23")
draught 5.50 m (18)
cargo capacities
total dead weight 1500 tons
feul 731 tons
drilling water 590 tons
potable water 228 tons
dry bulk (6 tanks) 7000 cu.ft.
deck cargo 700 tons
deck area 35x11.7 m (114"x38")
rig chainlockers 2
total capacity 120 m
machinery :
main engines 2 x 5000 hp at 600 r.p.m. driving c.p. propellers
bollardpull 120 tons
bowthruster 800 hp
lateral thrust 10 tons
winches :
one two drum anchorhandeling/ towing winch
pull ( max ) 250 tons
one general purpose winch with one drum
pull (max) 110 tons
two pendant wire stoage reels each with a capacity of 610 m of 76 mm (2000feet)
speed/feulconsumption
max. 15.5 knots 30 tons/day
economic cruising 12 knots 13 tons/day
the main engines have been developed to burn 150cst feul
the cost of which when projected over the duration of a long term charter will offer considerable savings when compared to other vessels only able to consume more expensive gasoil

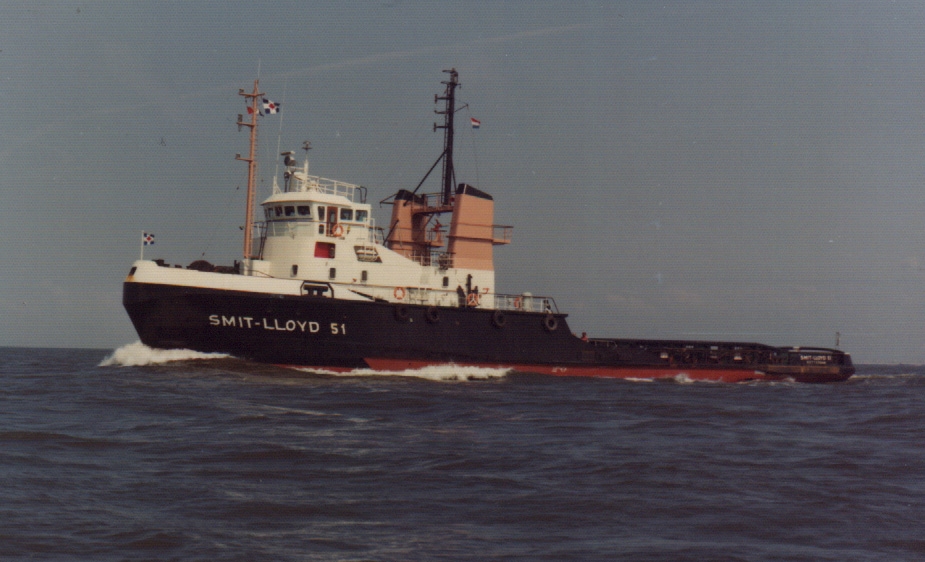

6ooo hp class
fixed platform supply vessels
dimensions:
length o.a. 65.50 m (216")
beam o.a 15.05 m (46.1")
depth 7.20 m (23.8")
draught (max) 5.95 m (19.6)
cargo capacities :
total dead weight 2270 tons
feul 750 tons
drilling water 1010 tons
potable water 190 tons
dry bulk (7 tanks) 11ooo cu.ft.
deck cargo 1000 tons
deck area 39.6 x11 m (130"x36")
machinery :
main engines 2 x 3000 hp at 600 r.p.m driving c.p. propellers in nozzles
bow thruster 2x300 hp each
lateral thrust 6.8 tons
speed/feul consumption :
max 13.7 knots 16 tons/day
economic cruising 12 knots 10 tons/day

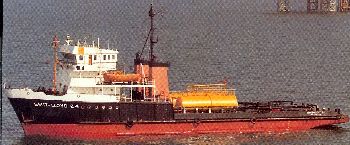

3000 hp class
straight supply vessels
dimensions:
length o.a. 58.95 m (193.35")
beam o.a. 12.60 m (41.2")
depth 5.90 m (19.4")
draught max 4.10 m (13.5")
cargo capacities :
total dead weight 900 tons
feul 400 tons
drilling water 395 tons
potable water 274 tons
dry bulk (5 tanks) 5350 cu.ft.
deck cargo 600 tons
deck area 33 x 9.2 m (180"x30")
machinery :
main engines 2 x1500 hp at 825 r.p.m. driving c.p. propellers
bow thruster 426 hp lateral trust 5 tons
speed/feul consumption :
max 11 knots 12 tons/day
economic cruising 10 knots 10 tons/day
|
